Corona Treatment of Sheets and Plates

SheetTec

The purpose of surface treatment of polymer based materials is to increase surface wettability through electrical discharge.

The low surface energy of polymer based substrates often leads to poor adhesion of inks, glues and coatings.

To obtain optimum adhesion, it is necessary to increase the surface energy of the substrate to just above that of the material to be applied.

Corona treatment results in improved surface adhesion properties.

Treatment of sheets and plates for this application may vary from 50 mm to 2000 mm, which gives the customer treatment flexibility of small and large plates.

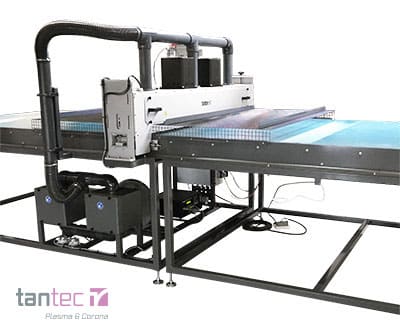

SheetTEC can be installed as a stand-alone unit or with a conveyor system for integration into existing production lines. SheetTEC is available as a single or double-sided surface treatment system.

SheetTEC is equipped with metal electrodes for the optimized treatment of non conductive polymer materials.

As an option Ceramic electrodes are available to allow treatment of conductive surfaces such as stainless steel, aluminum, and others.

Thanks to the high voltage technology developed by Tantec it is possible to treat sheets over the edges and even sheets where the edges are slightly bent.

The processing speed of the sheets may vary between 0.5 m and 10 Mtr. / Min.

SheetTEC ensures uniform treatment of boards up to 50 mm in thickness.

Cases

Tantec Section Divider

Technical specifications

FEATURES
Easy to install
The system requires only electrical power.
Process control
In combination with the HV-X series powergenerator and PLC’s the system can be monitored and adjusted very easily.
Single or dual sided
Both single and dual sided treatment systems available.
Cost efficient treatment process
Only electrical power is needed to achieve the effective treatment of foam and board; typically systems run from 1-4 kW depending on width and speed.
Environmentally friendly
Corona treatment of sheets and plates is considered an environmentally friendly process which has low operating costs.
Easy to maintain

This unit, as with all Tantec units are very easy to use, maintain, and install.

Watt density control
In combination with the HV-X series powergenerator, the system will adjust the generator output power according to the line speed.
Customized design
This treating system can be specifically designed by Tantec, to facilitate easy installation to new or existing production lines.
Technical Specifications SheetTEC Corona Treater
Mains power 100-250VAC – 50/60Hz(Universal power input)
Treatment power 200-4000 Watts
Treatment area Single or dual sided treatment
Treatment width 50 – 2000 mm
Line speed 0.5 – 10 m/min (others on request)
Treatable materials PP, PE, PVC. PVDA, PMMA, PS and other non-conductive polymers / conductive
Treatment thickness Up to 50 mm
Control and connectivity Complete with touch panel. (Standard – Proface)
Regulation compliance CE – RoHS – WEEE
