VacuTEC 5050

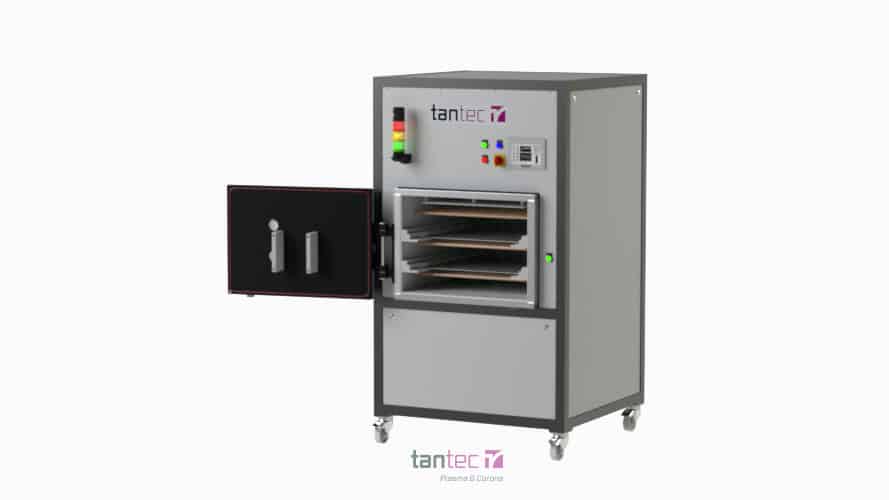

Tantec’s VacuTEC 5050 Plasma Treater is designed for the treatment of a large number of different injection molded parts.
The VacuTEC offers very fast treatment times and optimum adhesion properties for downstream coating, gluing, painting, and printing applications.
In the treating chamber, a vacuum is built up to between 0,1 and 3 mbar before an electrical discharge is created through the integrated plasma electrode.
Treatment cycle times are often short, between 5 – 600 seconds depending on the material and its formulation.
Effective size for products on 2 shelves: 500 x 500 x 100 mm. The VacuTEC is appreciated for its simplicity of operation, reliability in production, and fast process speed.
Treating gasses such as argon and oxygen can be applied, but in most cases, this is not necessary due to the high power exposed by the plasma discharge.
VacuTEC uses the advanced Tantec power generator HV-X series as a power supply and specially designed plasma transformer to provide voltage to the plasma electrodes.
Tantec has both standard VacuTEC machines, but also custom-designed machines.
The VacuTEC customized machines are specially developed and adapted 100% to customer wishes and requirements in relation to the production line.
Cases
Technical specifications
| FEATURES: | |
| Easy to install and use | Connect to mains power. |
| Fast treatment times | High power impact enables treatment times from 5 – 600 seconds, depending on the material. |
| Vacuum level | The plasma discharge is active from 0,1 – 3 mbar depending on the application. |
| Process gas | Process gasses such as oxygen and argon can be used, but in most cases, it is not necessary. |
| Process control | The entire plasma process is controlled by the HV-X generator and the PLC unit. All parameters are displayed through the touch panel. |
| Cost-efficient surface treatment | Due to the low power consumption and no need for special treatment gasses the unit is a very cost-efficient solution for improving surface wettability and adhesion. |
| Vacuum pressure Plasma | Enables treatment of both conductive and non-conductive surfaces. |
| Chamber door | Hinged door with window and safety switch. |
| Technical Specifications | VacuTEC 5050 | Vacuum Plasma Treater |
| Mains voltage and frequency | 100-480 VAC 50/60 Hz |
| Output voltage/plasma power | 5kV / 1000W |
| Power source | HV-X10 Generator |
| Compressed air inlet | 6 bar dry & clean |
| Treatment gas | Standard: air, oxygen, argon, nitrogen on request |
| Vacuum pump capacity in m³/min. | 100 m³/hour |
| Vacuum level | 0,1–3 mbar |
| Evacuation time, typical | 90 seconds |
| Plasma treatment time, typical | 5 – 600 seconds, depending on the material |
| Control and connectivity | Complete with the Tantec touch panel. |
| Regulation compliance | CE – RoHS – WEEE |
| Dimensions | 1115 x 955 x 1745 mm |
| Shelves | 2 |
| Tray size | 500 x 500 mm |
